Water flow meter 8–40 m³/h
Product is in stock
Delivery time: 2-5 working days

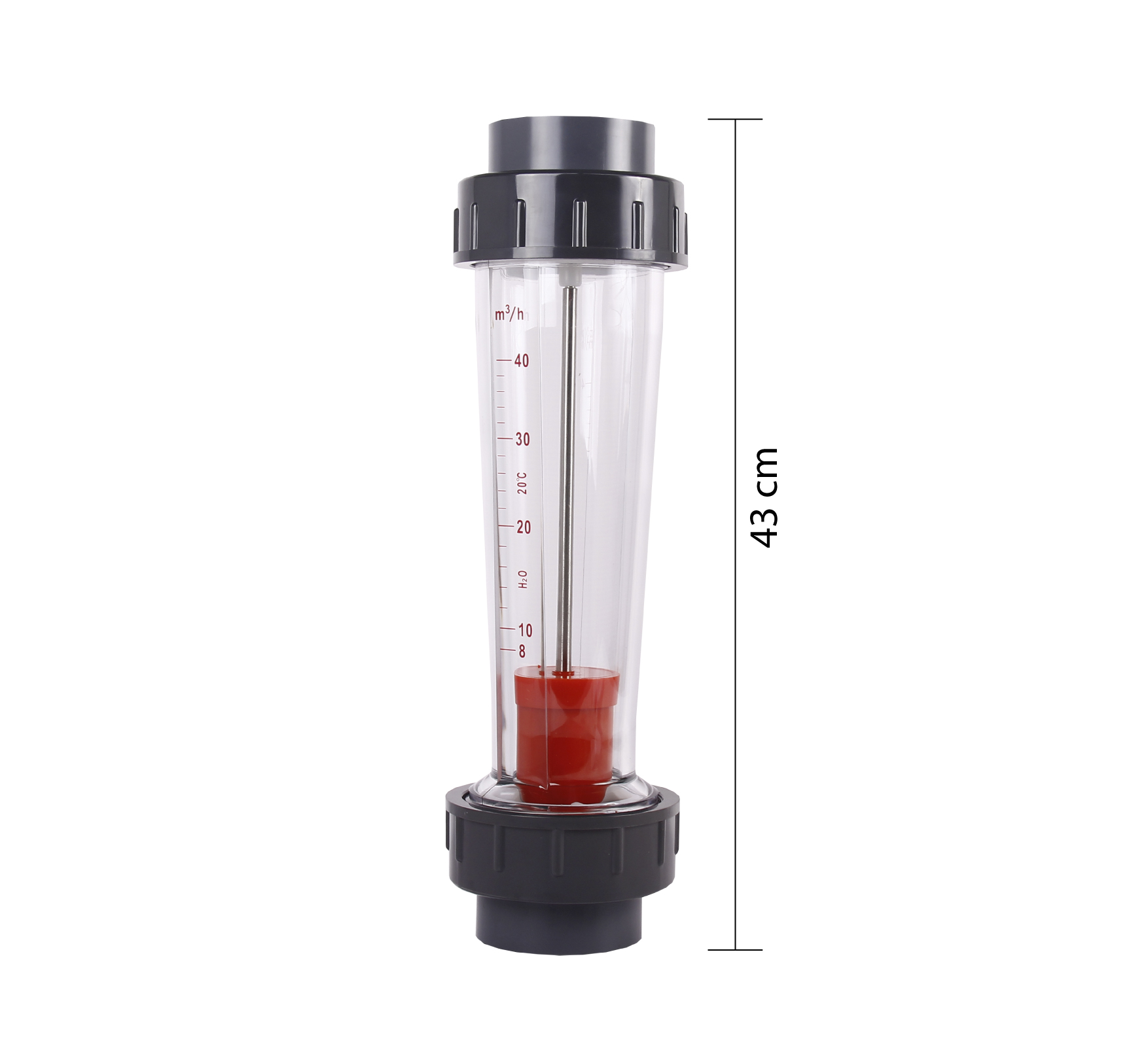

A water flow meter with a capacity of 8–40 m³/h is used to accurately measure the instantaneous flow of liquid in pipelines. It features a durable float made from special plastic that resists interaction with acids and alkalis, ensuring reliable long-term performance in a variety of water treatment and industrial applications. The robust construction and clear measurement scale make it suitable for monitoring and control in filtration systems, water supply lines, and fluid distribution networks.
Technical parameters of equipment | Unit | Model LZS-65 (8–40 m³/h) |
Connection (DN) | mm | 65 |
Measure range | m³/h | 8–40 |
Accuracy | % | 4 |
Working temperature | °C | 0–60 |
Operating pressure | MPa | ≤ 0.6 |

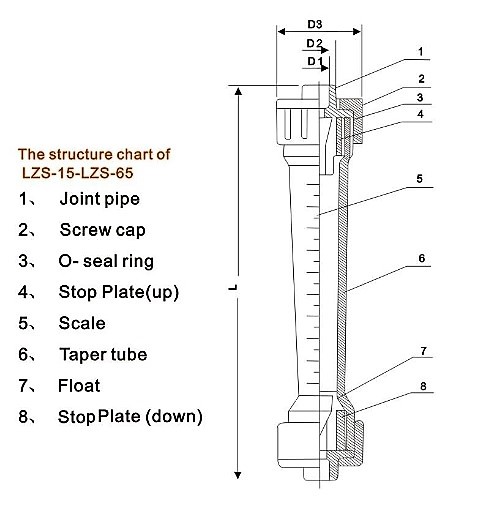

L | mm | 430 |
D1 | mm | 75 |
D2 | mm | 88 |
D3 | mm | 122 |
| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 0 | 0 | 0 | 1 |
