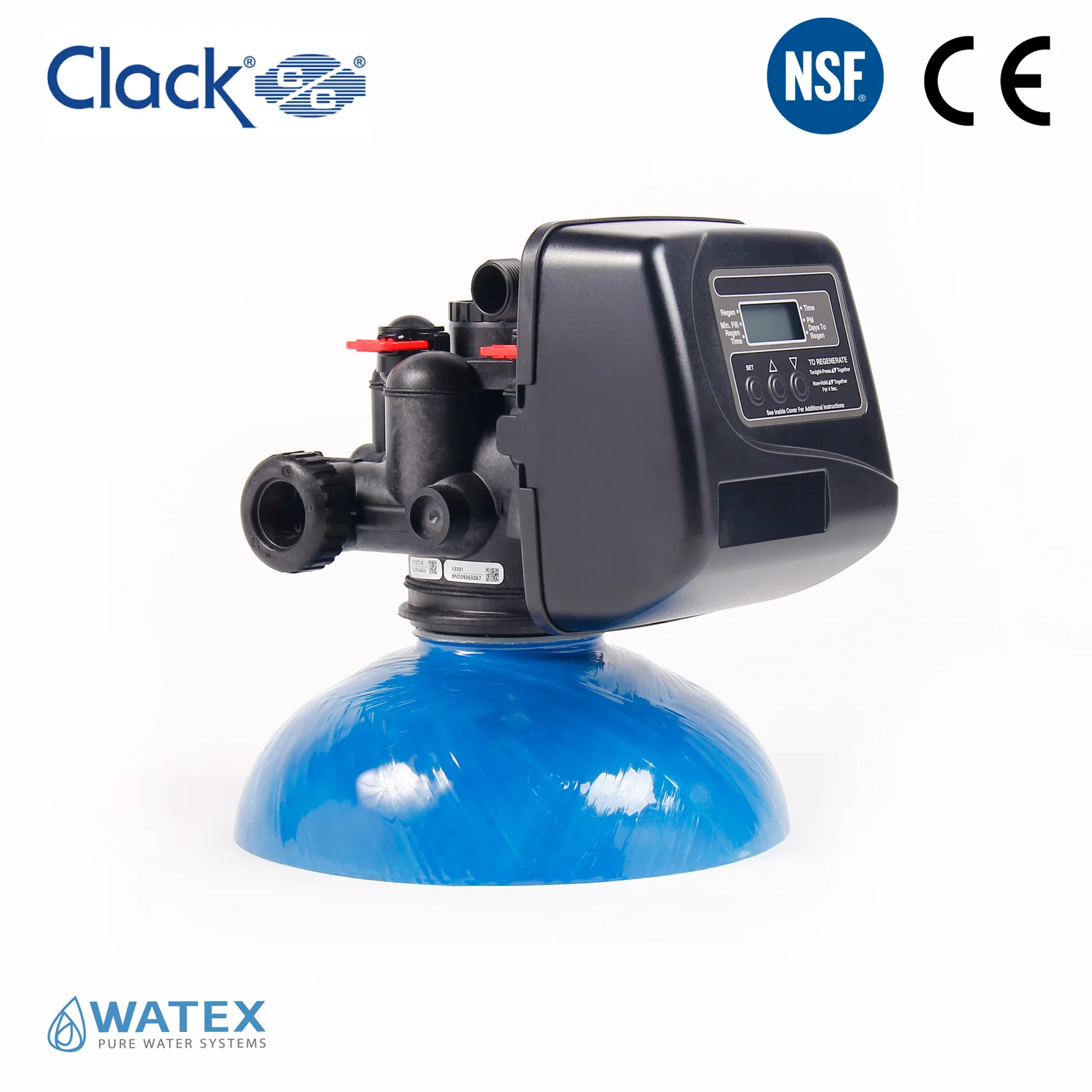

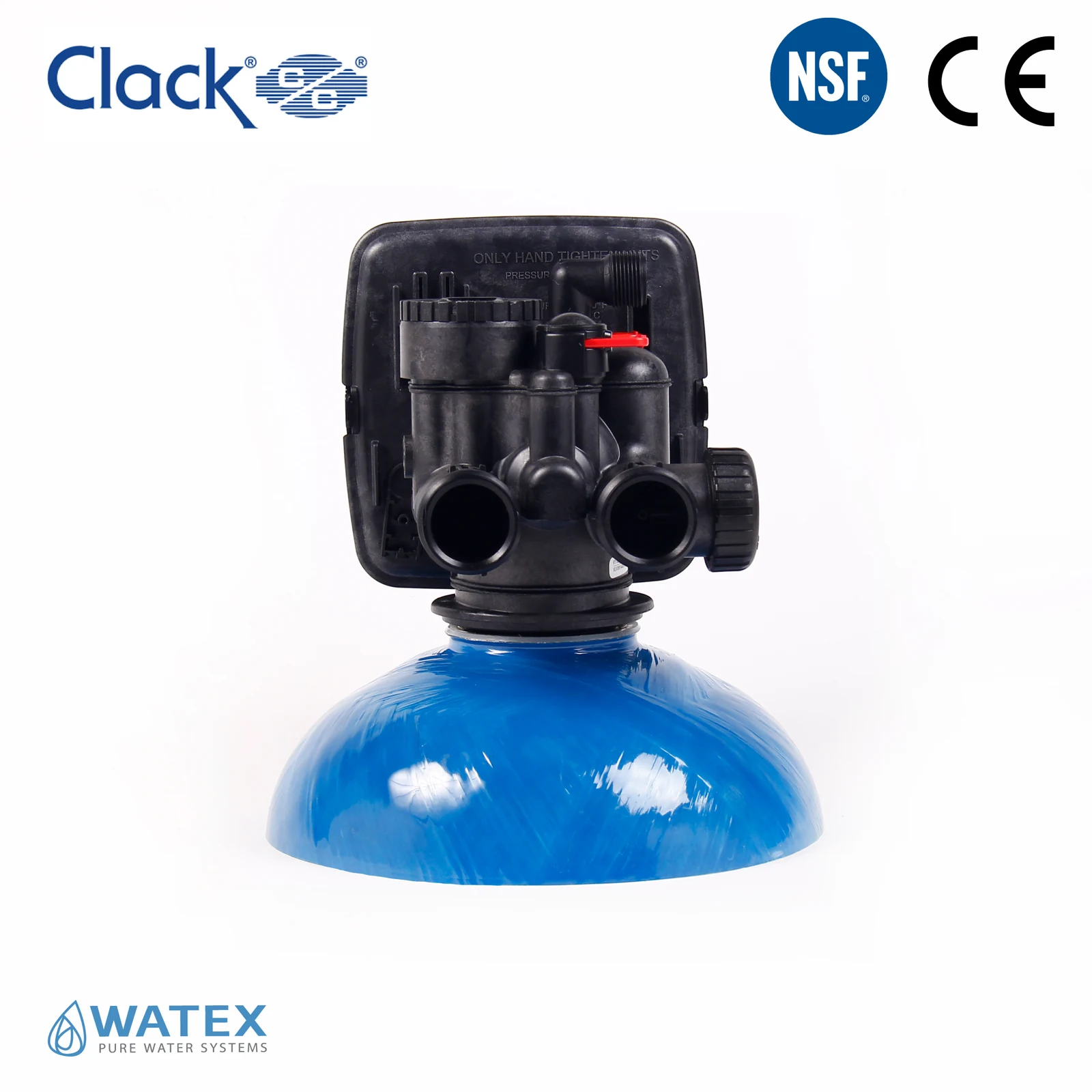

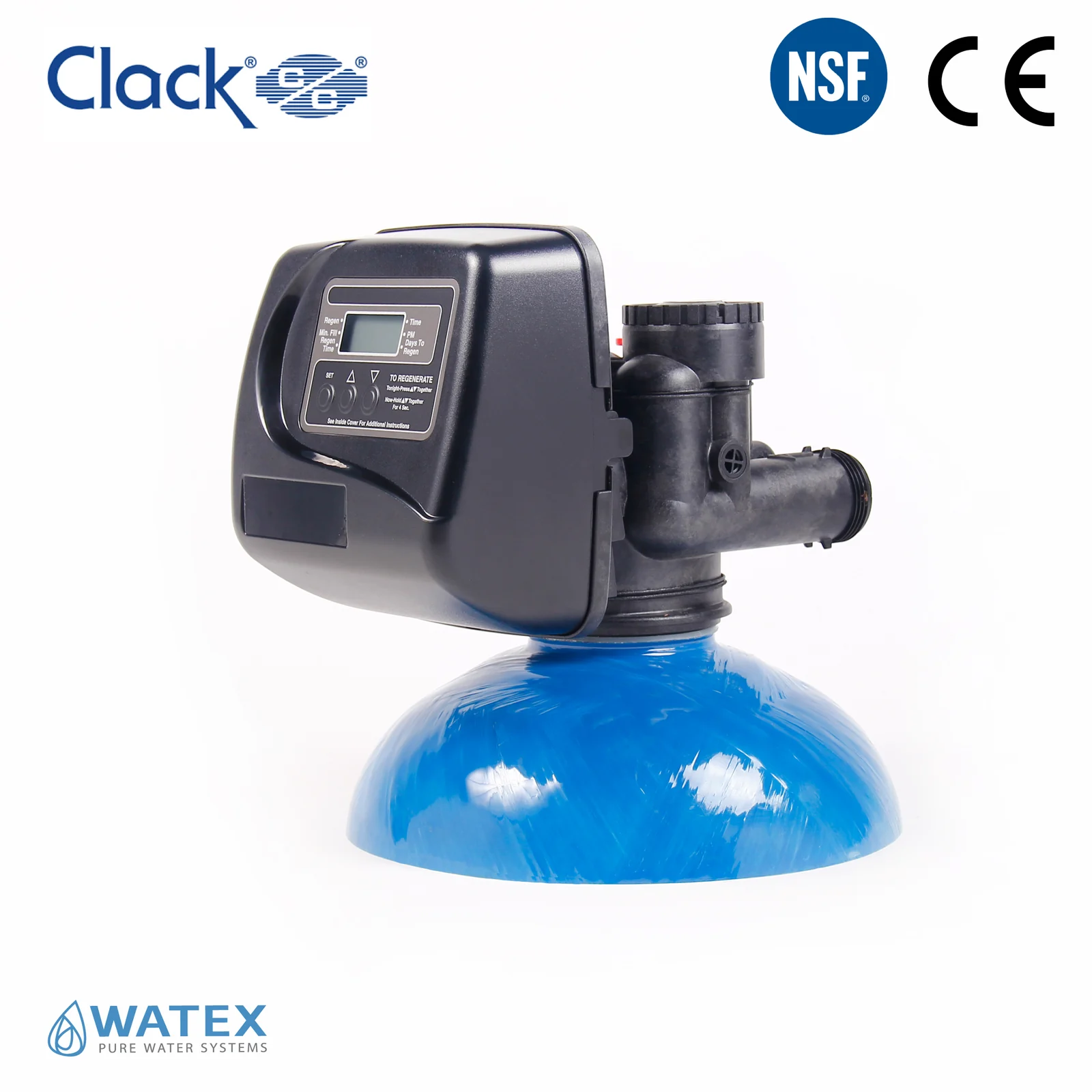

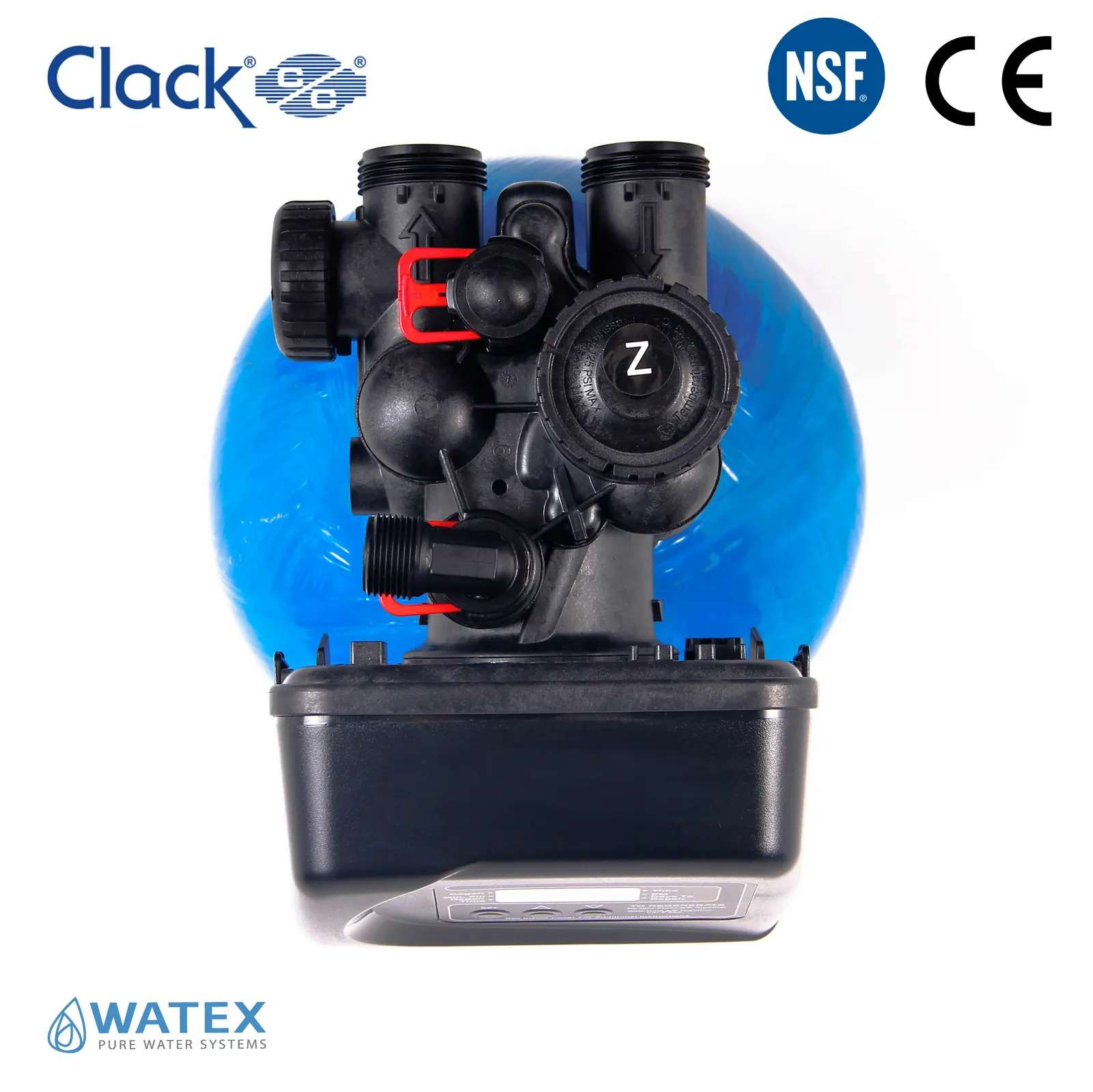

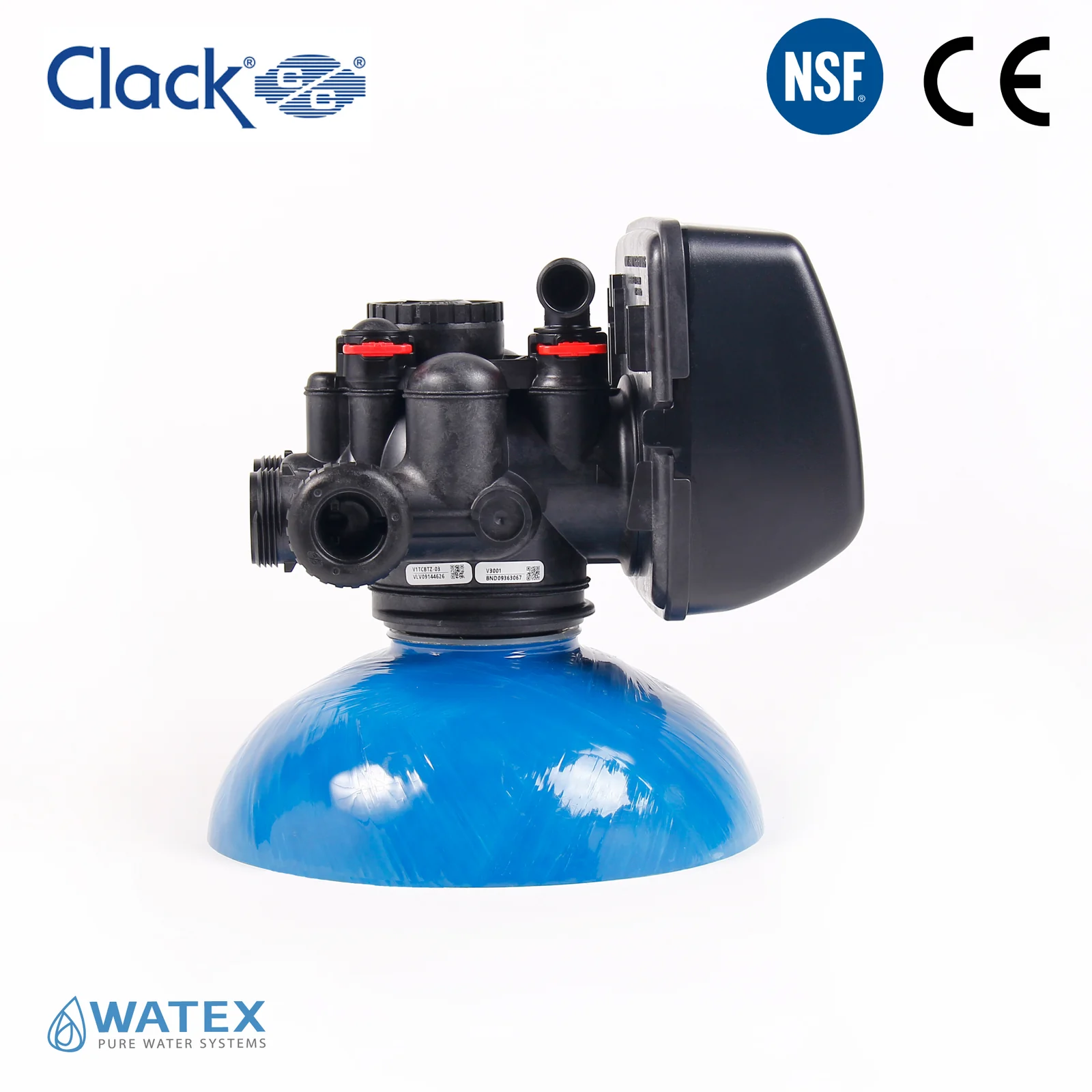

CLACK WS1TC filter control valve (time-based, backwash only)

Manufacturer: CLACK

Product SKU: V1TCBTZ-XX

Product is in stock

Delivery time: 2-5 working days

Have questions?

Description

Technical data

Attachments

Service flow rate of 5m³/hour, backwash 5m³/hour
Front panel display for time of day, days until next regeneration
Double backwash feature offers optimum regeneration, cleaning ability and efficiency
Coin Cell Lithium battery back-up with a 8 hour carry over
Auto detection of 50/60 Hz line frequency, with automatic 12/24 hour time keeping formats
Inlet/Outlet Fittings: ¾" to 1.5” NPS
Number of cycles: up to 6
Valve Material: Noryl (1) or equivalent
Regeneration: downflow
Operating pressure (min/max): 1,4 bar – 8,6 bar
Operating temperature (min/max): 4C – 43C
Electrical Specifications: (15V AC Adapter not included)
Supply Voltage: 230V AC
Supply Frequency: 50 Hz
Output Voltage: 15V AC
Output Current: 500 mA

Additional accessories can be purchased separately:

Product name	Product code
WS1 Bypass Assembly	V3006
CLACK WS1 Fitting 1" PVC Male BSPT 90 Assembly	V3007-16
CLACK WS1 Fitting 1” Plastic Male BSPT Assembly	V3007-06
WS1 AC Adapter (Transformer) 200-240V-15V European	V3186EU-06
WS1 AC Adapter (Transformer) 220v-240v-12v UK	V3186UK
CLACK WS1 Nut 3.4'' Drain elbow	V3192
CLACK Top basket 1''	D1203
